Model 130 Continuous Winder



The model 130 is a fully programmable continuous winder, commonly used to wind resistors, heating elements, microcoils and catheters for medical applications.

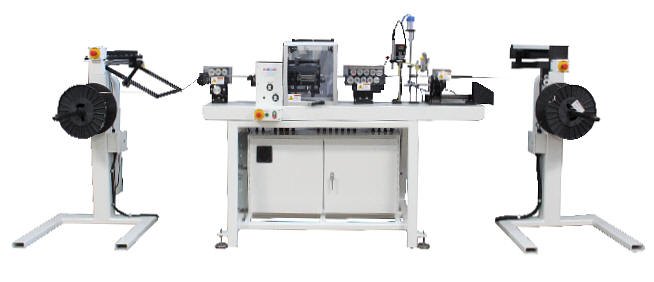

The system shown above includes the Model 130 Continuous Winder, MCS6 Control, a large spool payoff and large spool take up with traverse. The system also includes a cut-to-length feature and adhesive applicator.

The machine is capable of continuously winding an over wrap material onto a core material.  Accurate tension control is available to control the tension of both the core material as well as the over wrap material.  The machine and control are sophisticated enough to change the winding pitch any number of times to any pitch value.

Features:

• Fully automatic - winds to length or until material runs out

• Core: .001 to .250" (6.35mm)

• Overwrap: 50 to 20 AWG (.025 to .25mm)

• Programmable tension on core and overwrap material

• Pitch drive: Servomotor driven to 300 in/min

• Accurate pitch calculation to .000001" (.0001mm)

• Product length readout

• Easily do multiple pitch changes

Options:

• Wound product may be spooled or cut to length

• MCS2 or MCS6 control

• Heat the wound product to stress relieve it

• Apply adhesive and cure it with UV or accelerator

• Cut off wound product to predetermined lengths

• Wind overwrap as Single-filar, Bi-filar, Tri-filar, or Quad-filar
