MACHINE

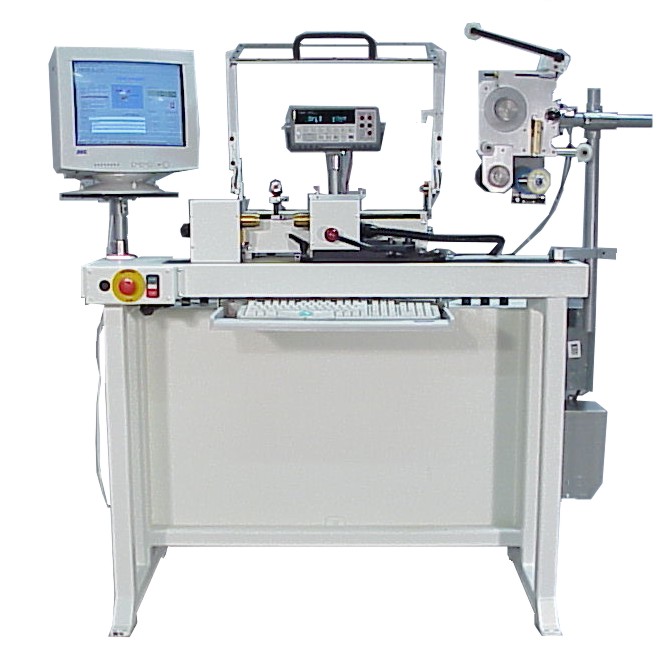

Model 103 Resistor / Heater Coil Winder

Wire size:

50 to 20 AWG

Maximum coil diameter:

3 1/2 inches / 88.9mm (upgradeable)

Spindle height from table:

4 inches/ 101.6 mm

Spindle & Tailstock output shaft:

3/8" shaft

Spindle & Tailstock output shaft:

3/8" shaft

Spindle drive:

5.9 lb/in, 4200 RPM, Brushless Servomotor

Tailstock drive:

 X Axis traverse distance:

12" (upgradeable)

X Axis traverse drive:

32 oz/in, 6450 RPM Brushless Servomotor

 Tailstock Quill Travel:

1 1/2 inches / 38.1mm

Max distance between centers:

0-18 inches (upgradeable)

Power requirements:

240 VAC  3 Ph  50/60 Hz  1.5 KVA

Dimensions:

LxWxH 48x25x58 inches / 122x63x147cm

Weight:

400 lbs.

CONTROL

Model MCS4

Model:

MCS4 PC based

Computer:

Built in Pentium class

Motion Control:

MCS Motion Control Board & Intelligent I/O Board

Operating System:

Windows 98/2K/XP

Software:

MCS CoilPro Graphical User Interface with multi-media

Display:

Standard SVGA monitor (any size) -

Touch Screen(optional)

Input:

Standard PC Keyboard, Mouse or Track ball

 Program Storage:

40.0 GB Hard Disk (minimum) - CD Rom - 3 1/4 Floppy

I/O Points:

16 in / 16 out (24 VDC)

 Network:

Included Ethernet

OPTIONS

 Foot Pedal Control:

Variable Speed w/On-Off Switch

Wire Guide Assembly:

Eyelet, Pulley or Optional “Electro Guide”

Dereeler Ports:

1 to 8 for Hysteresis Brake w/Tension Switc

Additional I/O Points:

8 in / 8 out (24 VDC)

Wire Tensioning:

Friction, Programmable Hysteresis, or Closed Loop
