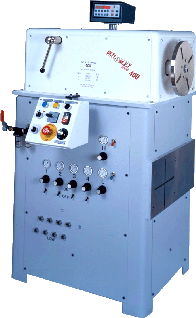

Model 400G Coil Winder

*Similar machines are in stock and available for sale, call our sales department for details.

Machine Specifications

MACHINE

Model 400G

Wire size:

FINE wire up to 2 Ga

Max. Coil diameter:

varies due to wire size

Spindle height:

44"

Output shaft diameter:

1 1/2"

Motor Equipment:

1 1/2 HP Brushless Servomotor

Spindle speeds:

Gear

Max RPM

Ratio

Torque



1

583

1.000:1

13 ft/lbs



2

320

1.824:1

24 ft/lbs



3

192

3.039:1

39 ft/lbs

  4 145 4.012:1 54 ft/lbs

Optional Equipment:

Toggle Lock Tailstock with Base:

Heavy Duty Toggle Lock Tailstock with Base:

 Quill Diameter:

1 3/4"

2 1/2"

Quill Travel:

5"

4"

 Quill Tooling:

60 degree live center

60 degree live center

Long Ways:

Max distance between centers: 28" (47" Long Way)  Max distance between                   centers: 41" (60" Long Way)

Dimensions:

Height: 48" Width: 36" Depth: 32" Weight: 650 LBS

Line Power (230 VAC 60 HZ):

1 Phase, 60 HZ, 15 amps





CONTROL

Model MCS2

Control Type:

Embedded - Freescale 32 bit Processors

Display:

4 line x 40 Character Backlit LCD

Input Keypad:

24 Key (1/2" Rubber Tactile Touch)

Program Storage:

3500 lines / Complex and 10 Presets / Simple

I/O Points:

8 in / 8 out (24 VDC)

Programming Software:

MCSCOM Windows XP/7/10 GUI

Interface:

RS232 for PC Interface

Network:

Optional USB





OPTIONS

Foot Pedal Control:

Variable Speed w/On-Off Switch

Wire Guide Assembly:

Eyelet, Pulley or Optional “Electro Guide”

Dereeler Ports:

1 to 8 for Hysteresis Brake w/Tension Switch

Additional I/O Points:

8 in / 8 out (24 VDC)

Wire Tensioning:

Friction or Programmable Hysteresis Brake
