Machine

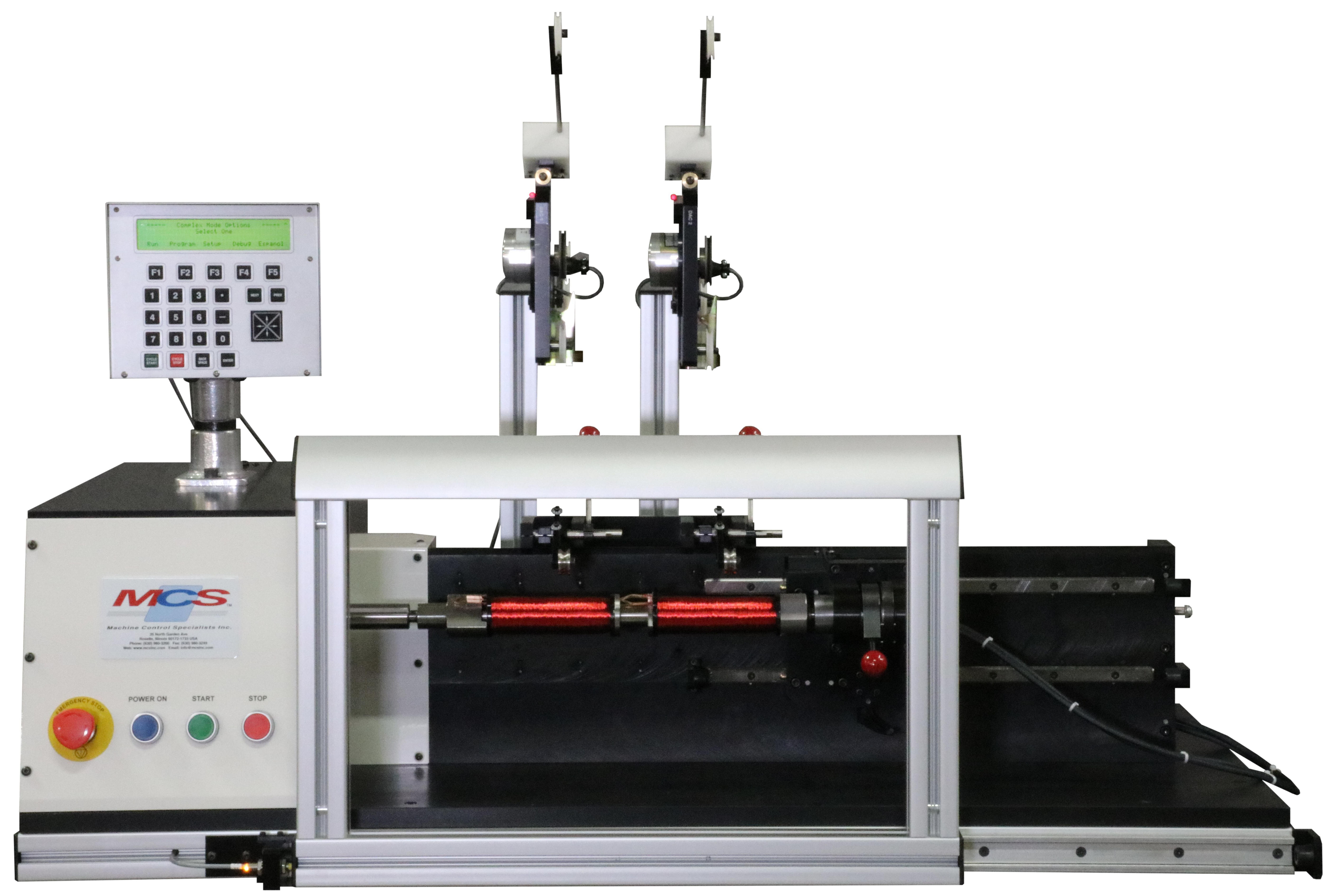

Model 220

Wire size:

48 to 12 AWG

Max. Coil diameter:

9 3/4"  - 248mm

Output shaft diameter:

3/4" - 19mm

Max Traverse Distance:

12", 24", 36" - 304mm, 608mm, 914mm

Max distance between centers:

18", 30", 42" - 457mm, 762mm, 1067mm

Spindle Motor Power:

1 HP, 3000 RPM

Belt driven spindle pulley ratio:

Multiple options - either high speed or torque

Spindle drive:

Brushless Servomotor w/digital drive

Traverse drive:

Brushless Servomotor w/digital drive

Spindle brake:

Electromagnetic brake - programmable

Tailstock Travel:

5" w/MCS horizontal lever - 1" w/Meteor style

Spindle Tooling Interface:

Male shaft or Meteor style collet

Tailstock Quill Tooling:

Male shaft (indexable) or live center

Wire guide arm:

Single standard, multiple optional

Wire Guide Assembly:

Guard Operation:

Manual or Air Operated

Mains (120/240 VAC 60 HZ):

1 Phase, 50/60HZ, 1800 Watts

Control

Model MCS2

Control Type:

Embedded - Dual Freescale 32 bit Processors

Display:

4 line x 40 Character Backlit LCD

Input Keypad:

24 Key (1/2" Rubber Tactile Touch)

Program Storage:

7000 lines Complex mode and 10 Presets / Simple mode

I/O Points:

8 in / 8 out (24 VDC)

Programming Software:

MCSCOM Windows XP/7/10/11 GUI

Interface:

RS232 for PC Interface

Network:

Optional USB

Options

Foot Pedal Control:

Programmable Variable Speed w/On-Off Switch

Dereeler Ports:

1 to 4 for Hysteresis Brake w/Tension Switch

Additional I/O Points:

8 in / 8 out (24 VDC)

Wire Tensioning:

Friction or Programmable Hysteresis Brake or Servomotor
